This brand-new replacement kit serves as a direct replacement for Wurlitzer Telecontrol models 40089 and 0039074. It is designed for Wurlitzer i84 Jukeboxes with models that include the 1015 One More Time (OMT), New York, New York, Carnegie, and New Orleans.

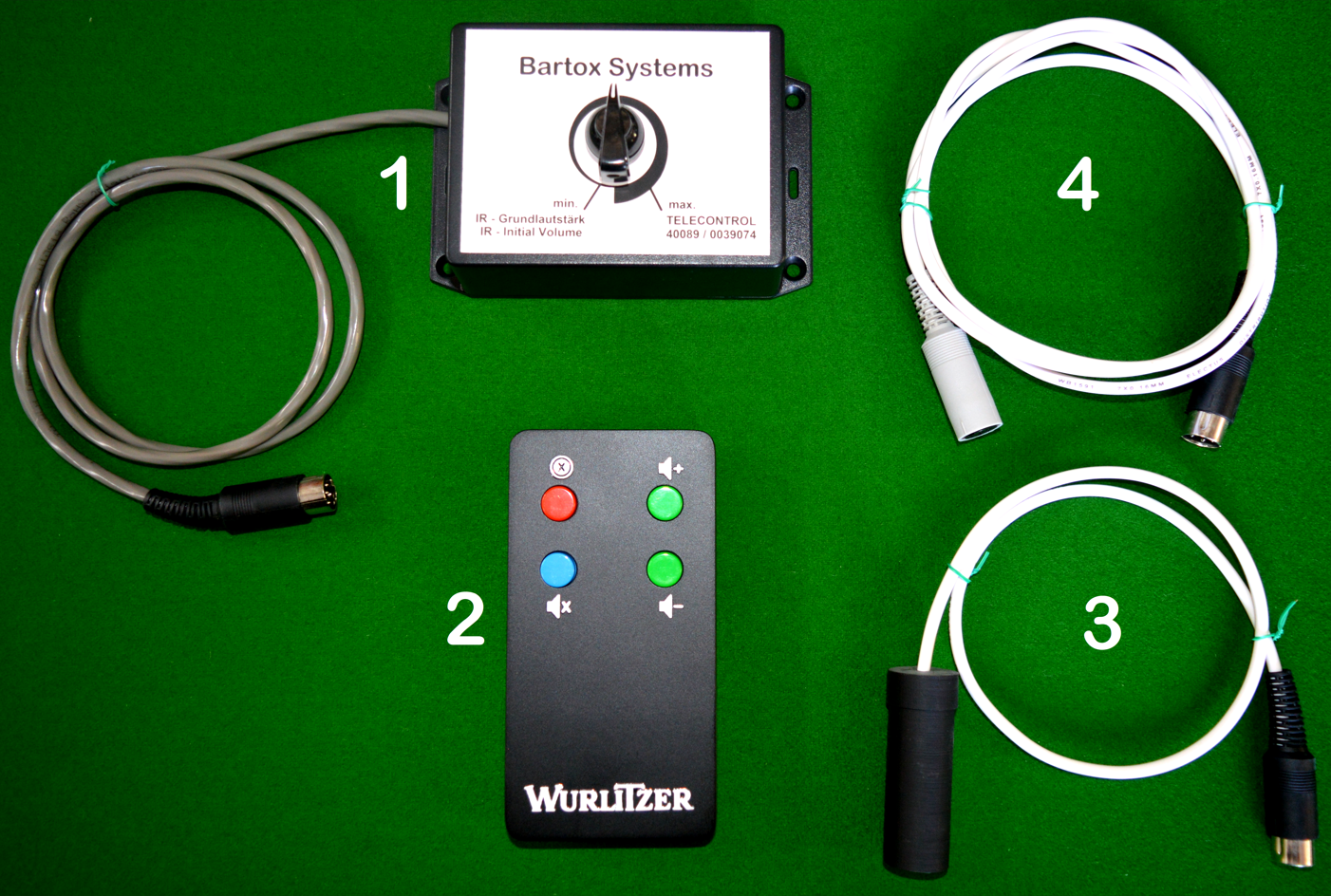

The Kit includes:
1 – Telecontrol (40089 / 0039074)
2 – Infra Red (IR) Remote control
3 – IR remote receiver
4 – IR receiver extension cable.

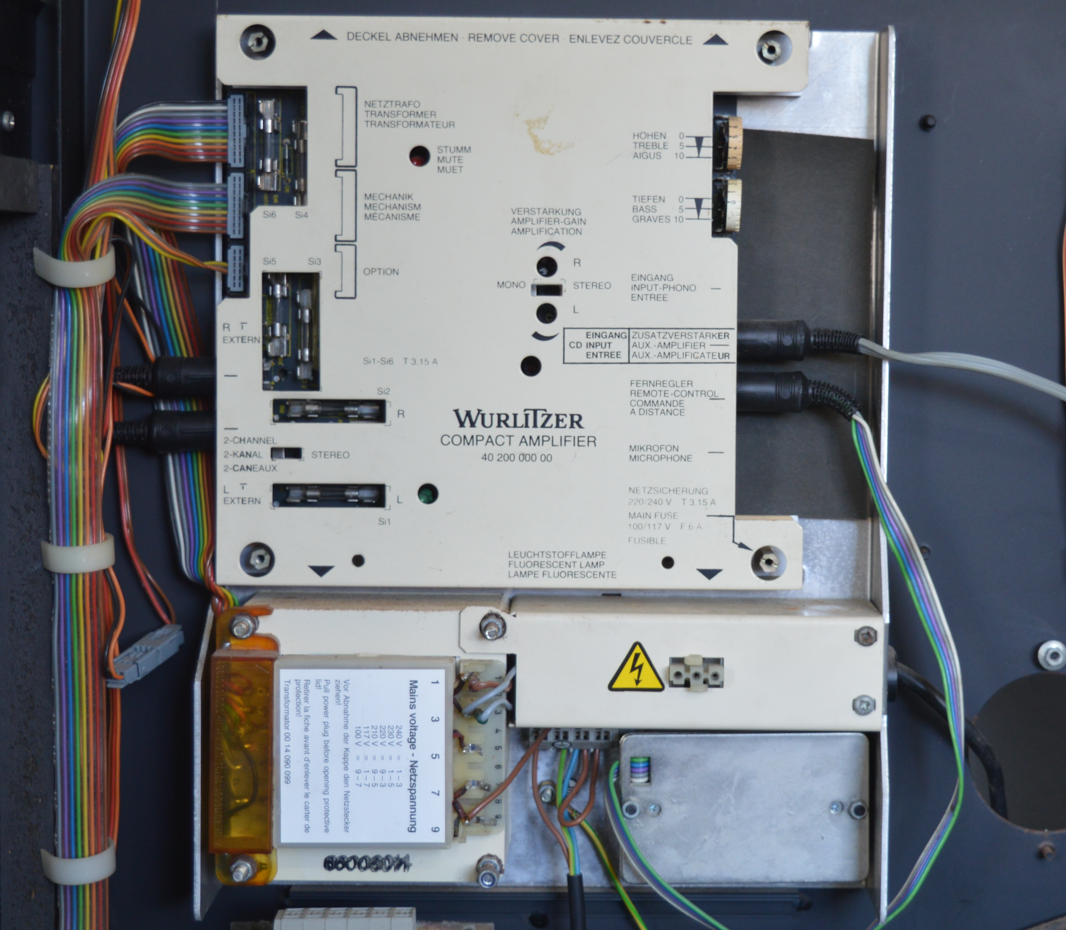

Wurlitzer i84 Compact Amplifier 40 200 000 00
For the Telecontrol to work in your Jukebox, it must use the Compact Amplifier 40 200 000 00.
Installation Summary to suit a 1015 OMT

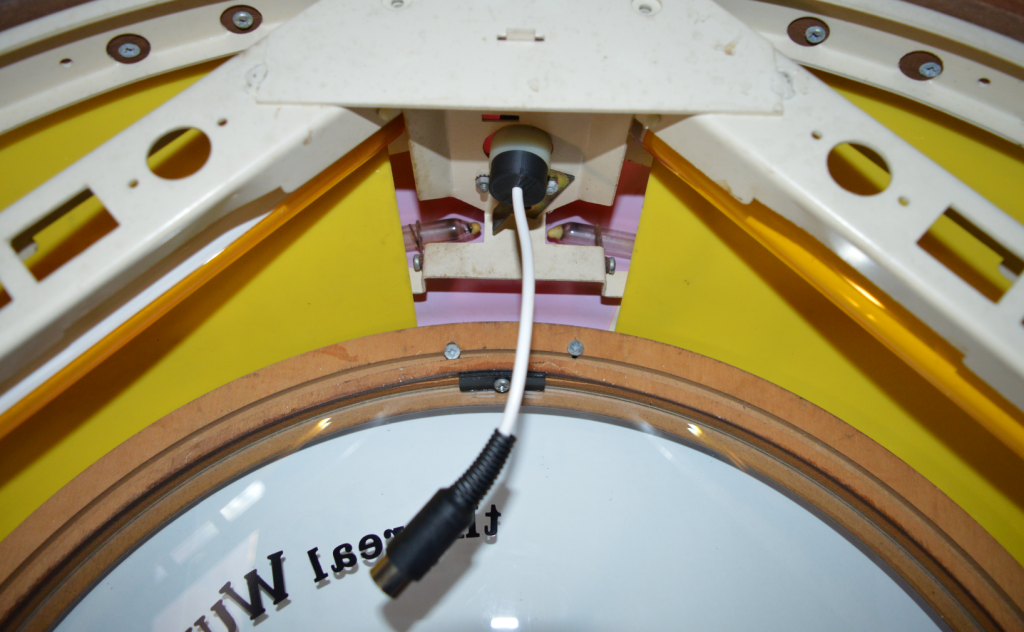

Install the remote Receiver into the door

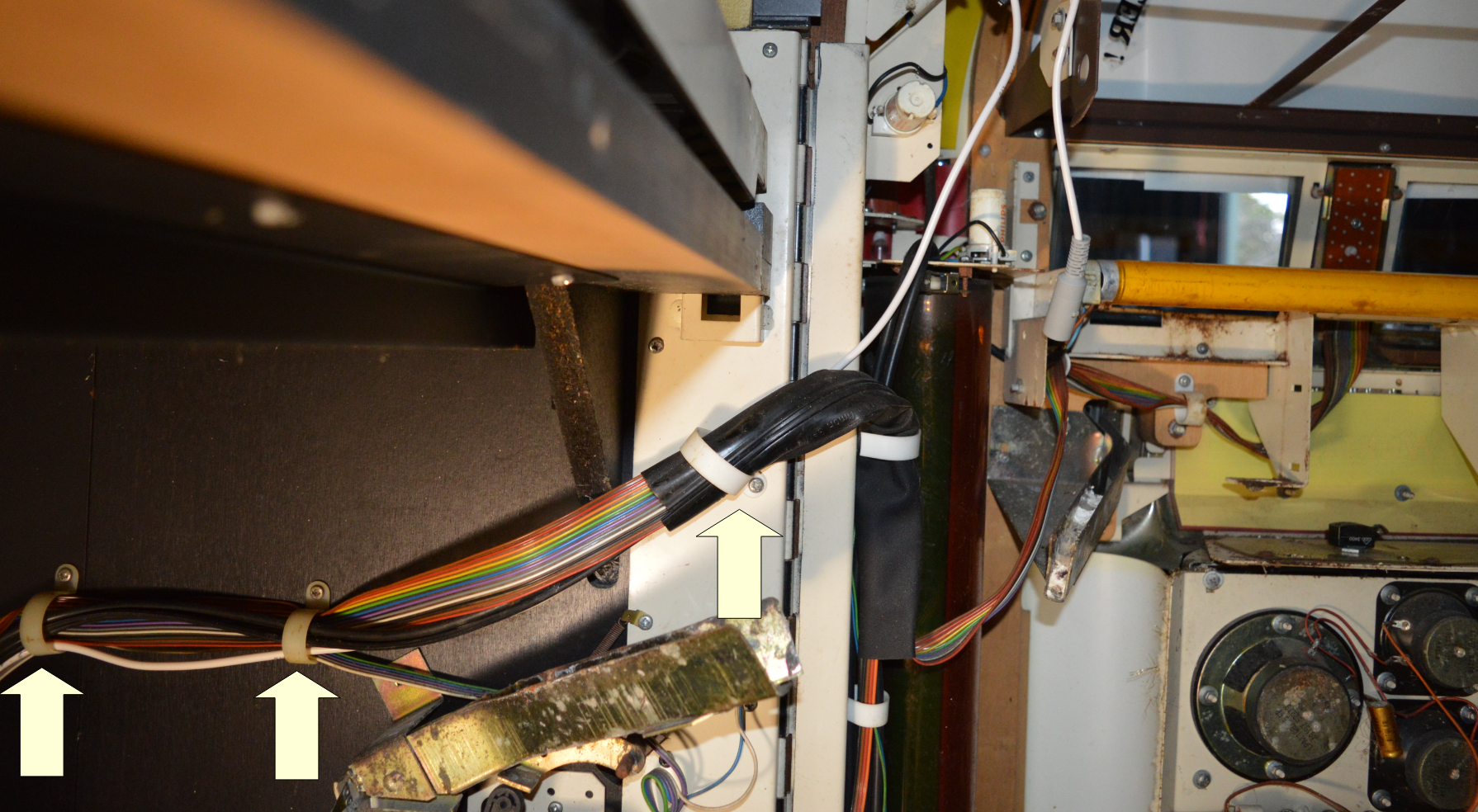

Install the IR extension cable in with the cabinet harness.

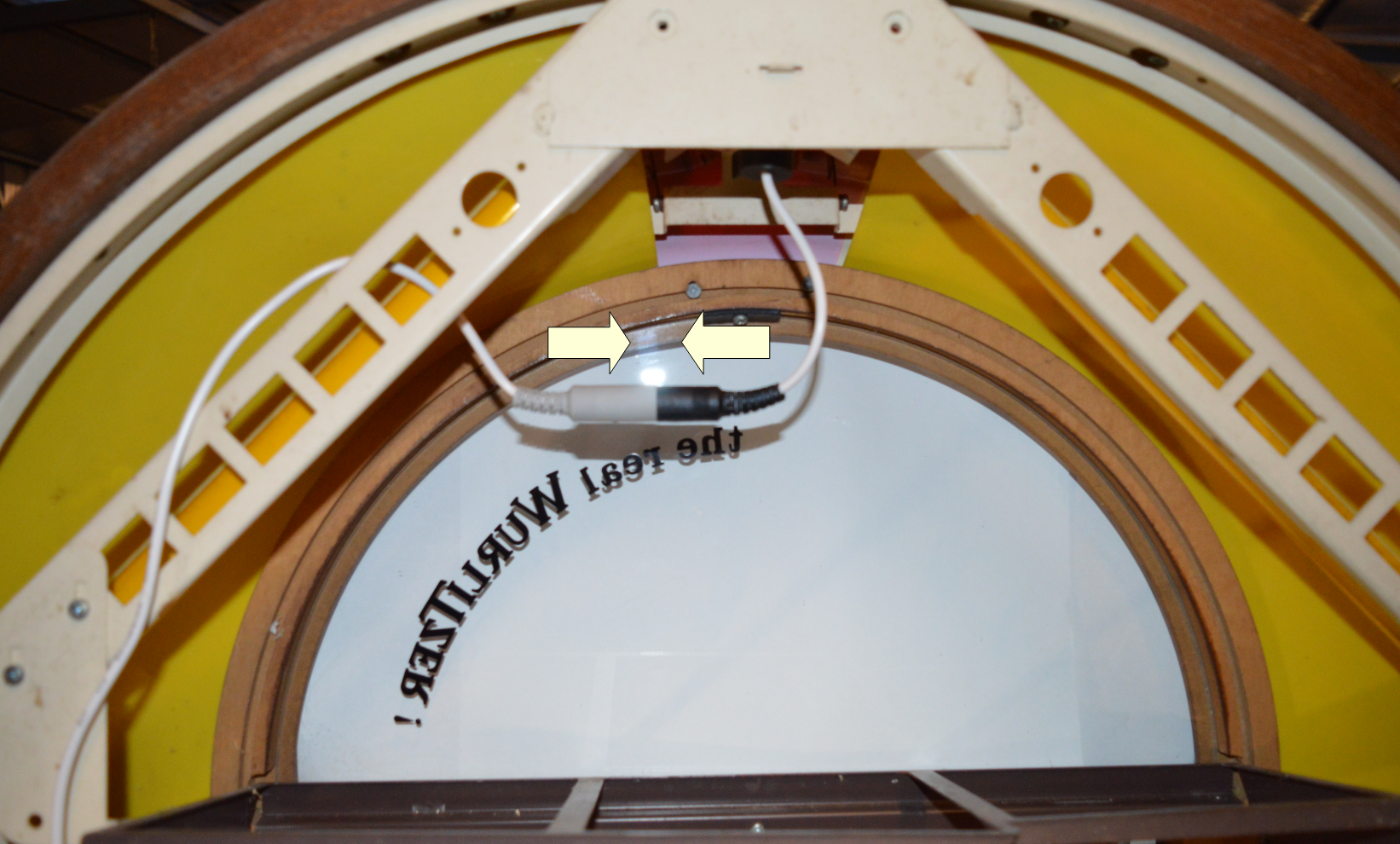

Connect the extension to the IR Receiver

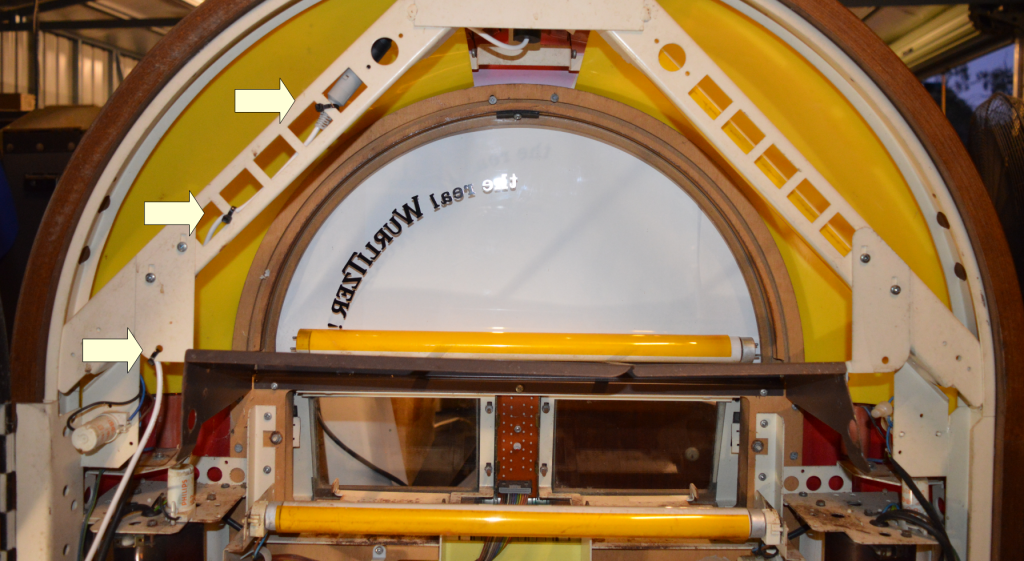

Secure the IR extension cable to the door

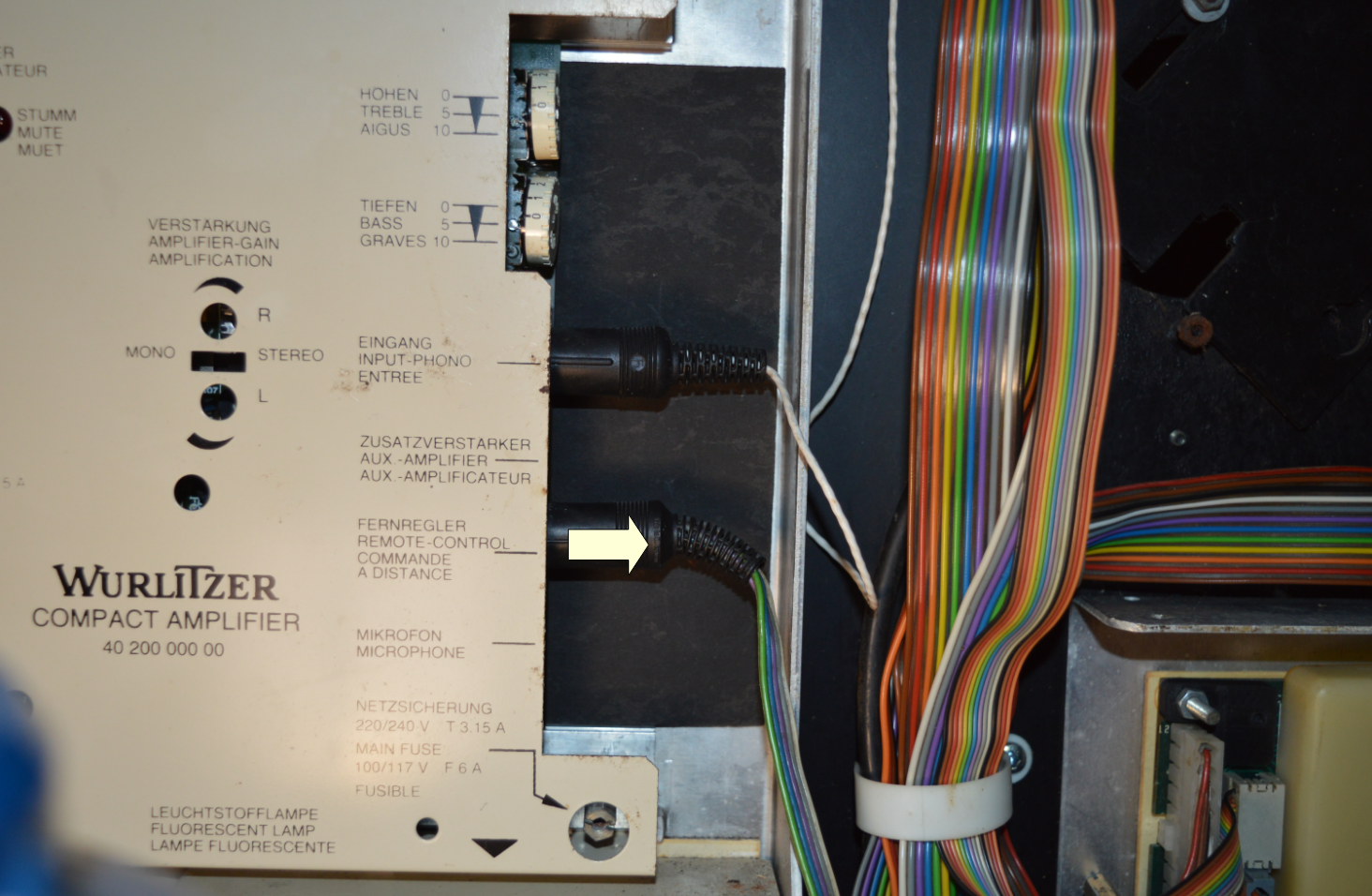

Unplug the standard volume control cable from the Remote-control socket of the amplifier

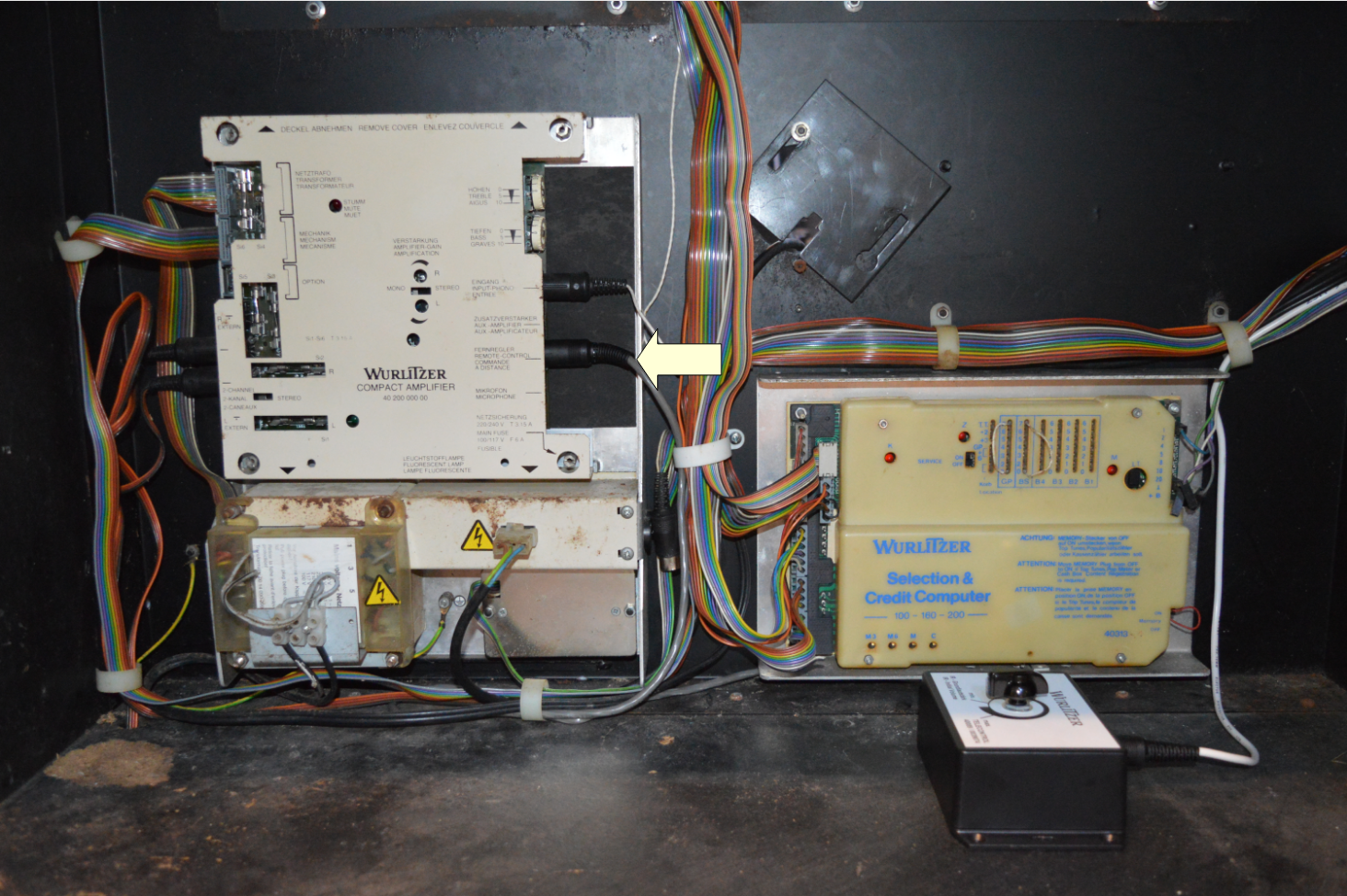

Mount the Telecontrol in a suitable location and plug the IR receiver extension cable into the Telecontrol. Plug the Telecontrol Grey Cable into the Remote Control socket of the Amplifier
You can now use the remote control to adjust the Jukebox Volume, Reject a song and Mute the Jukebox.
Note: Mute is active only when the Mute button is held down (the same as the Wurlitzer OEM Telecontrol and remote)
A full installation manual can be found here
